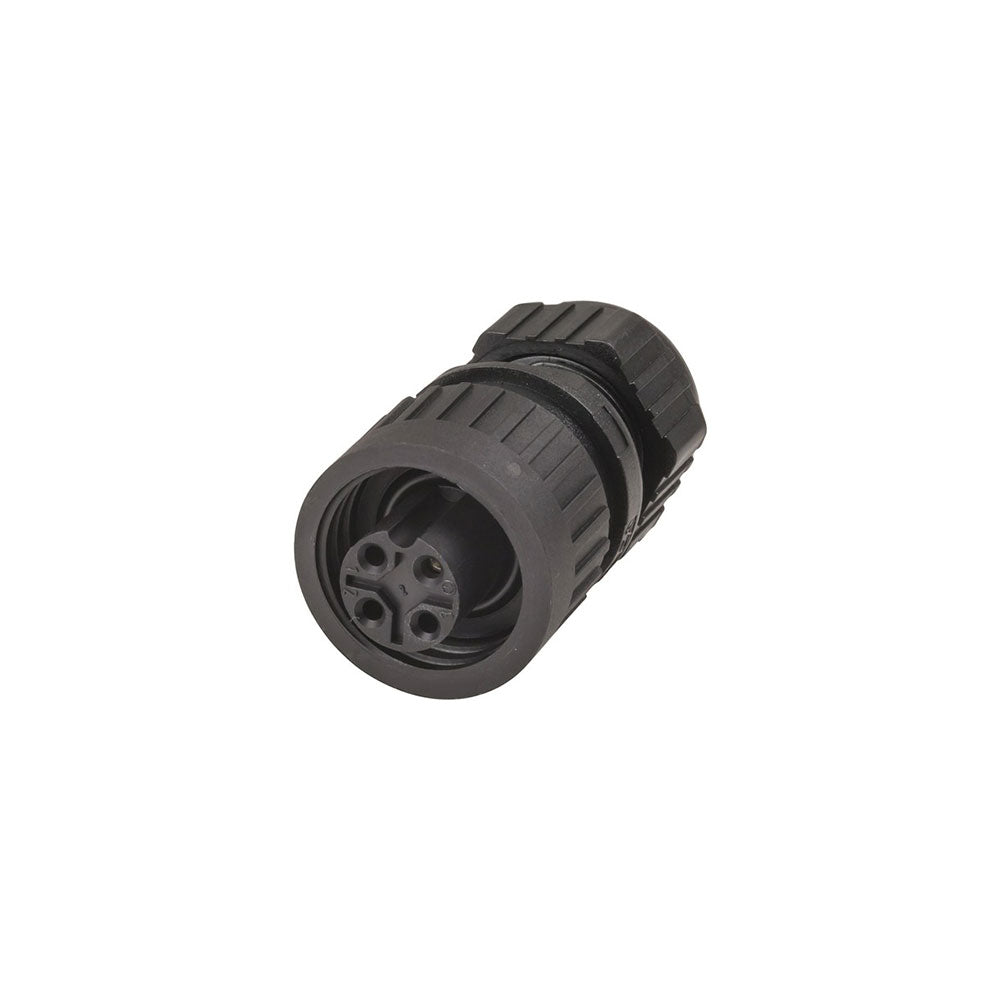

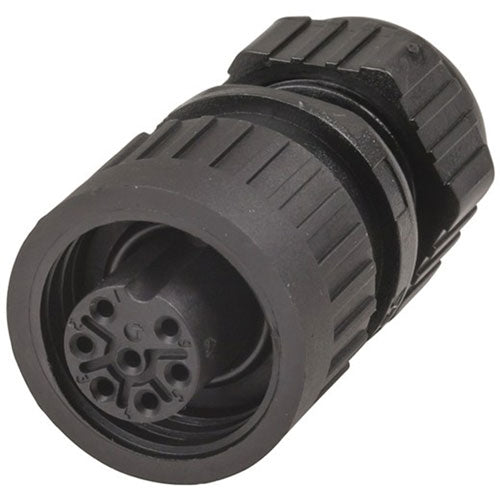

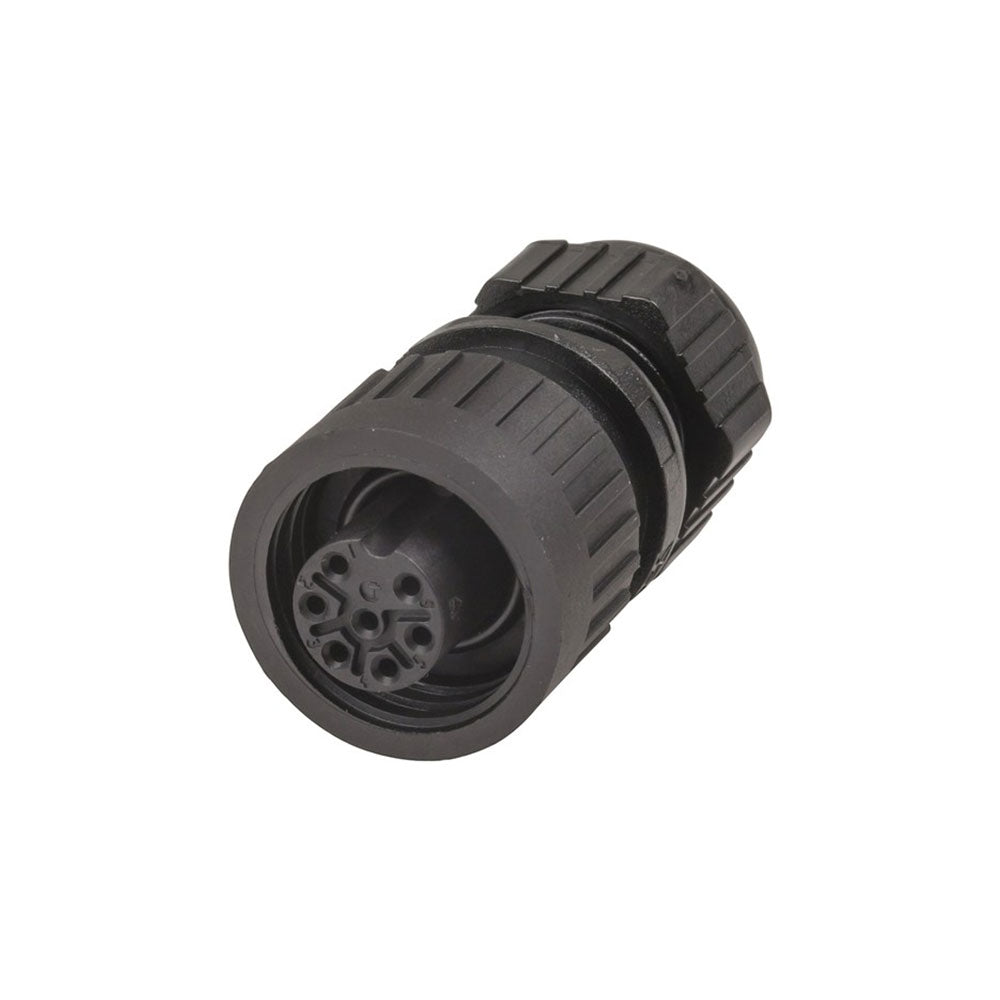

Pre-earth CA Series Line Socket

HirschmannSKU: 198426

Insulation resistance: ≥ 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Temperature range: -40DegC to + 100DegC
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)

Option: 3 Pole

Variant

Price:

¥4,406

Stock:

In stock

Quantity:

Can I get this before Christmas?
✔️ Yes

Note: Products unavailable for pre-Xmas delivery will still be shipped as quickly as possible, with a likely delivery date some time after Xmas.

Share this product

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
