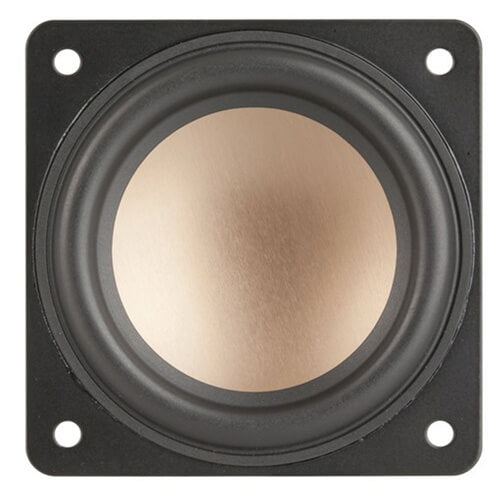

Shielded 15W 8ohm Full Range Speaker 3"

Full range speakers suitable for use in surround speakers in home theatre system, computer multimedia speakers and portable speaker designs. It has advanced alloy cone design coated with special damping material.

4 x screw mounting holes

General Data

Max Power Handling (Pmax)(W): 30

Weight (M)(Kg): 0.53

Electrical Data

Nominal Impedance (Z)(Ω)): 8

DC (Re)(Ω): 6.5

Voice Coil and Magnet Parameters

VC Diameter (mm): 20

VC Length (H)(mm): 9

VC Former: Kapton

VC Frame: CCAW

Magnet System: shielded

Magnet Former: Ferrite

Force Factor (BL)(N/A): 3.06

Gap Height (He)(mm): 3

Linear Excursion (Xmax)(mm): 3

T-S Parameters

Suspension Compliance (Cms)(uM/N): 920

Mechanical Q (Qms): 3.75

Electrical Q (Qes): 1.15

Total Q (Qts): 0.88

Moving Mass (Mms)(g): 2.6

Effective Piston Area (Sd)(m2): 0

Product Specifications

Note: This item requires Australian Standard 230V / 50Hz mains power supply to operate. Please check your local power supply to ensure that this item will work in your country. Adapters and transformers may be required and are not included.

• Length : 78mm
• Width : 78mm
• Depth : 53mm
• Weight : 0.53kg
• Packaged Volume : 0.97l
• Packaged Weight : 0.58kg
• Packaged Length : 11cm
• Packaged Width : 11cm
• Packaged Height : 8cm
• Driver Material : Metal
• Nominal Impedance : 8Ω
• RMS Power Rating : 15W
• Sensitivity (SPL@1W, 1m) : 82dB
• Magnetically Shielded : true
